Truma – VarioHeat Eco – Additional Warm Air Kit

The Truma VarrioHeat eco Additional Warm Air Kit is designed to be used with the ‘Truma – VarioHeat eco- Gas Heater – Kit’ (available with either a Black or Creamcowl) when the heater ducting is required to be greater than 1 mtr.

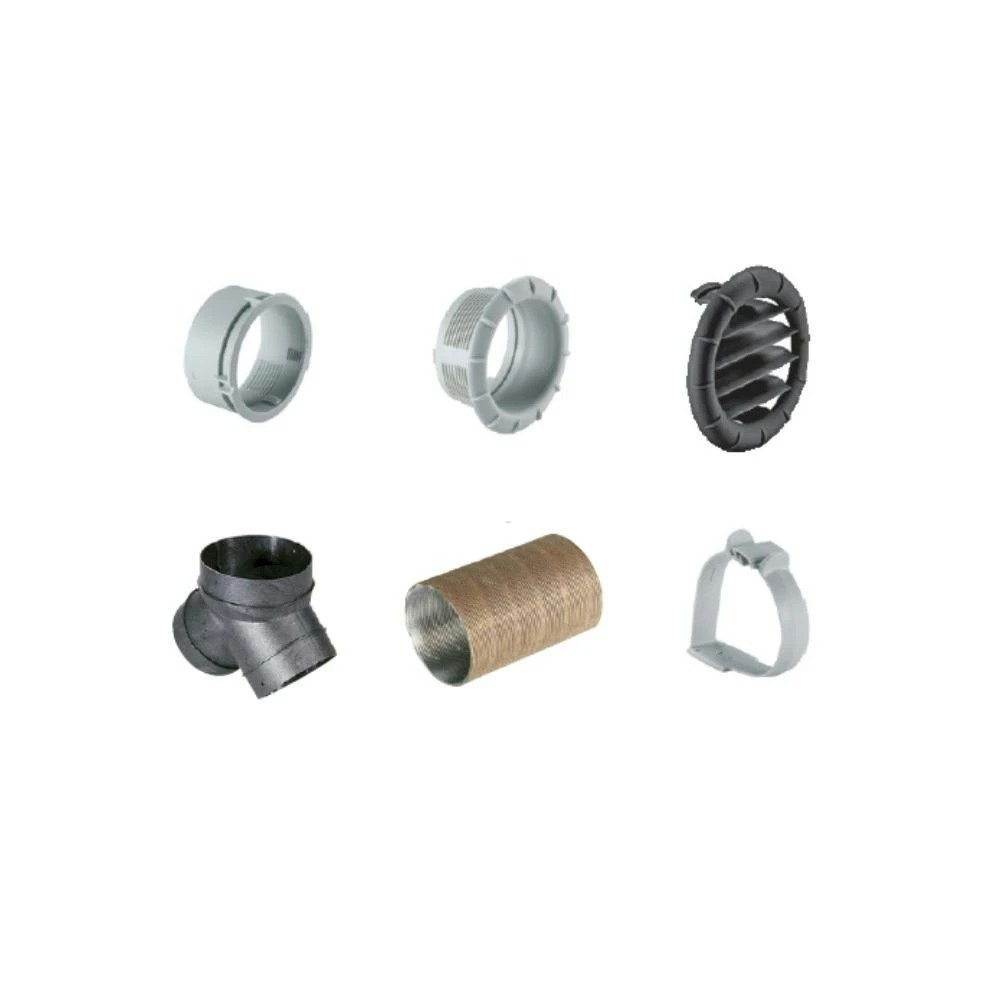

What’s in the Kit:

2 x 40181-01 – End outlet nut
1 x 40171-07 – End Outlet, Grey
1 x 40171-05 – Air end outlet EN black
2 x 40721-05 – Lamellar insert – Black
1 x 39611-01 – Y-piece – inlet 80mm (1 inlet) , outlet 72mm (2 outlets)
1 x 39550-00 – Duct VR 72mm – 3m in one length
4 x 40261-01 – Clamp – 72-75mm

Note:

This kit allows for two outlets and a maximum of 3mtrs in ducting.
3m of ducting is the maximum amount of duct allowed in a VarioHeat eco installation, please see installation instructions for more information.
It is also important to also note that this kit is for a Type A gas appliance, and as such must be installed by a qualified and licenced gas fitter to Australian Standard AS/NZS5601.2. Failure to do so will void the manufacturer’s warranty & may pose a potential risk to your health & safety.
