Shurflo WHITE City Water Pressure Regulator

SHURFLO CITY WATER PRESSURE REGULATOR WHITE

Combined mains pressure water entry, pressure regulator and check valve.

Quick, easy wall mount.

SHURFLO Mains Press Regulator, water inlet, White, USA f-NPT-3/4, has a built in regulator helps protect water system from high pressure damage.

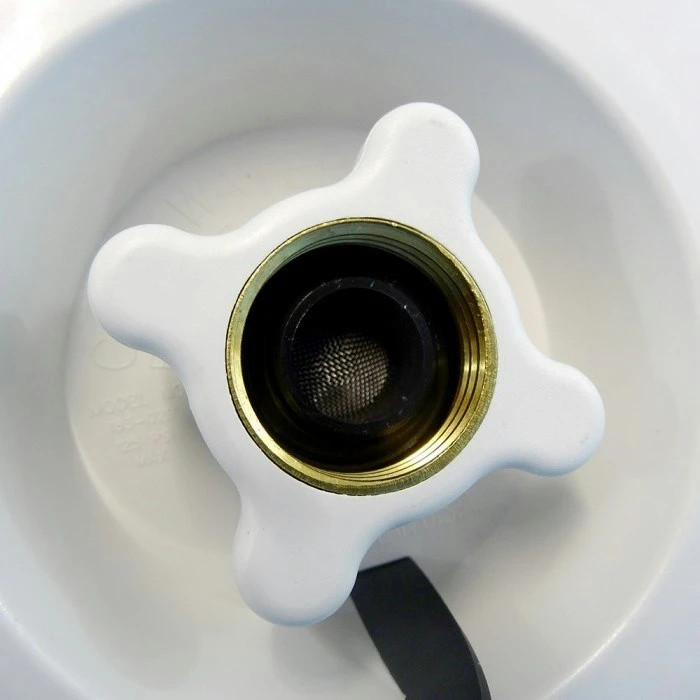

The Filter screen prevents dirt and foreign substance buildup
Built in check/non-return value, prevents water loss when pump is on
The water enters the inlet via a 3/4” NPT USA female thread**. (A screw on protection cover is also included).
The fitting requires a hole in the wall of about 85mm diameter, and extends back around 80mm with a male 1/2 BSP thread for connecting RV pipework
1 year warranty.
Model: 006154, 800-00520, 183-020-08
Brand: SHURflo
Barcode: 054568571403
Pressure is reduced to a nominal 50 PSI.
Outside diameter approx 100mm, with four external fitted screws to attach to outside wall.
Inlet thread is a Non-standard Australian Thread – Female USA NPT-3/4
This is a OEM product and does not include gasket or screws
