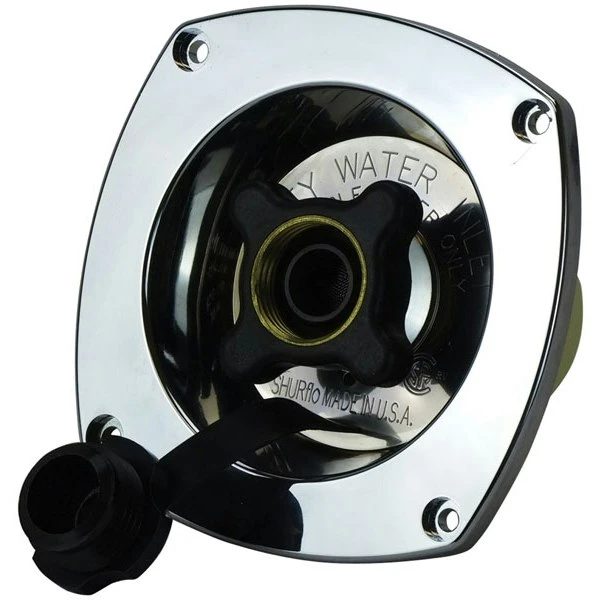

SHURflo Pressure Regulator Chrome



SHURFLO CITY WATER PRESSURE REGULATOR CHROME

Reduces mains water to 50 psi

Combines mains water pressure entry,

pressure regulator and check valve.

Very easy to fit.

SHURFLO®’s exclusive diaphragm design prevents high-pressure damage often caused by city water. These high performance water entries limit water pressure and include a check valve. 3/4″ GHT – Female Swivel Inlet. 1/2″ NPSM – Male Outlet.

183-020-04

The Filter screen prevents dirt and foreign substance buildup
Built in check/non-return value, prevents water loss when pump is on
The water enters the inlet via a 3/4” NPT USA female thread**. (A screw on protection cover is also included).
The fitting requires a hole in the wall of about 85mm diameter, and extends back around 80mm with a male 1/2 BSP thread for connecting RV pipework
1 year warranty.
Model: 183-020-04
Brand: SHURflo
Pressure is reduced to a nominal 50 PSI.
Outside diameter approx 100mm, with four external fitted screws to attach to outside wall.
Inlet thread is a Non-standard Australian Thread – Female USA NPT-3/4
This is a OEM product and does not include gasket or screws
