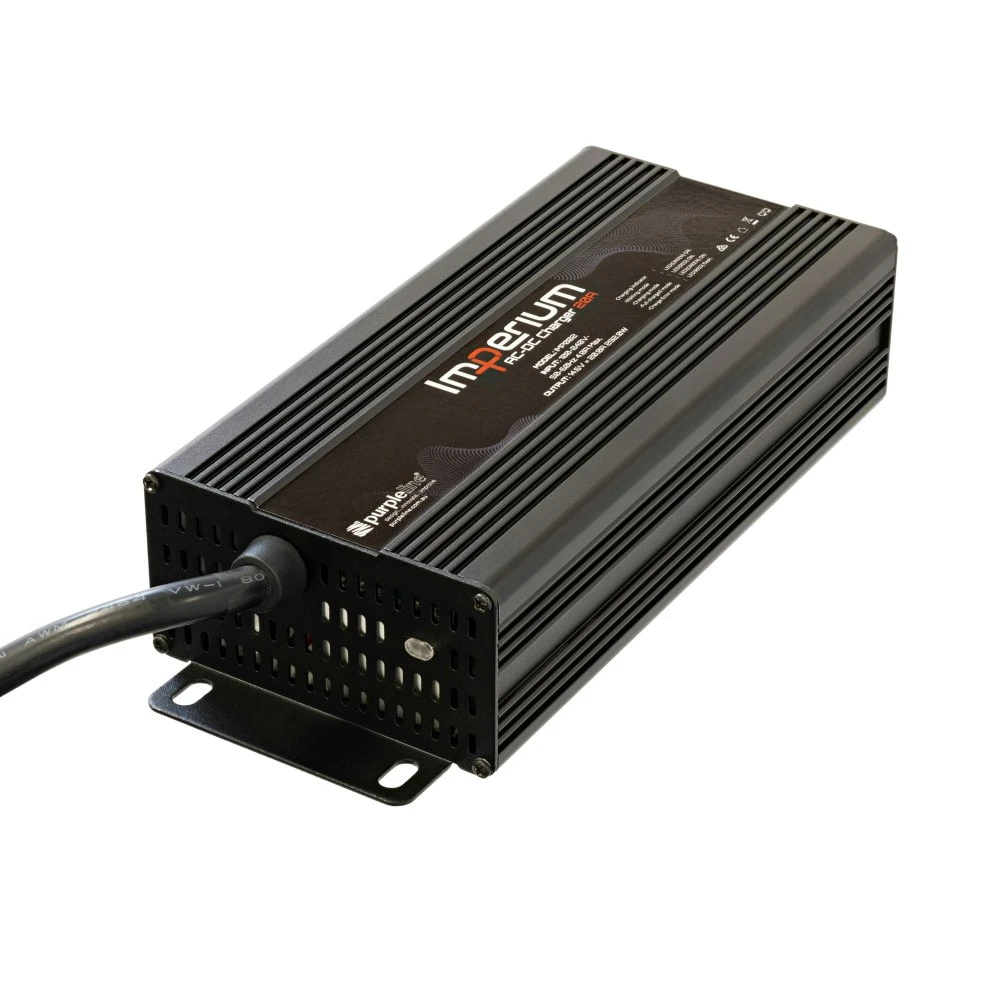

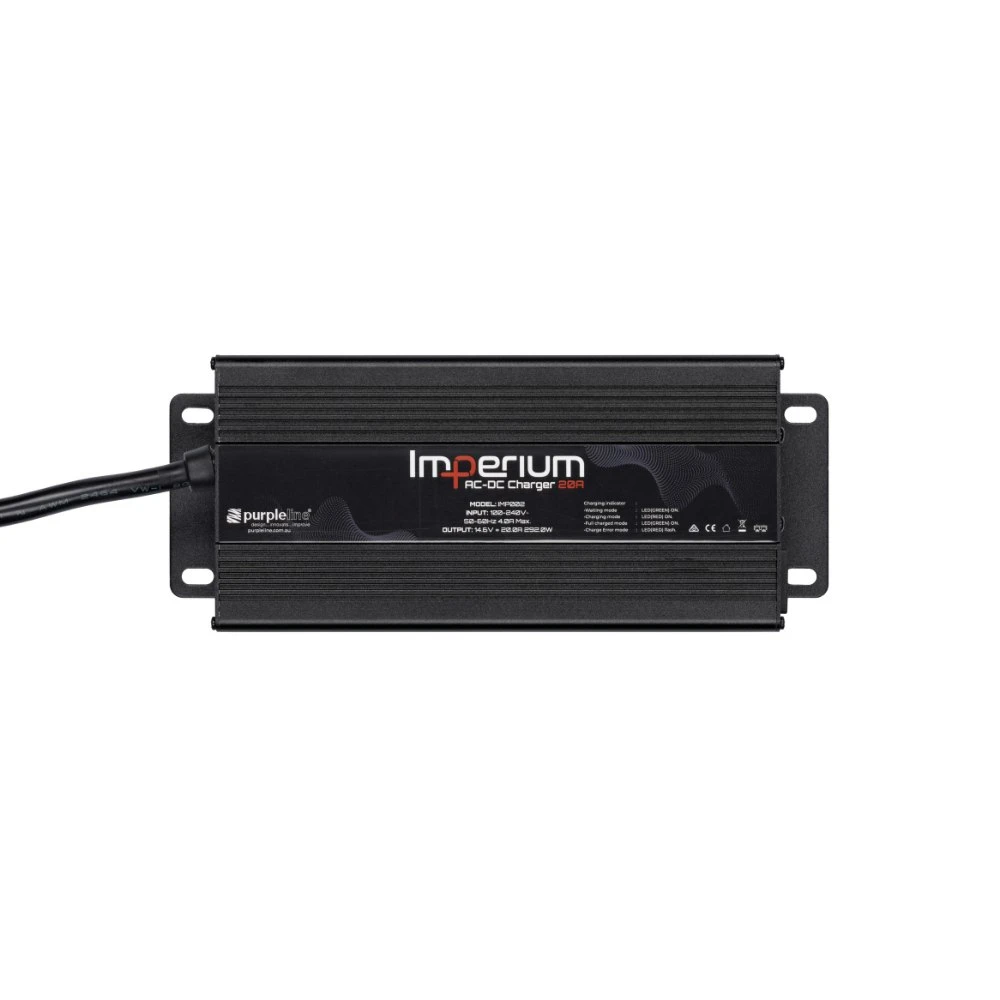

Imperium – 20A AC-DC Battery Charger

The IMP002 Imperium 20A AC-DC battery charger has single chip microcomputer (MCU) controlled, 3 stage intelligent charging technology. This can accurately track the battery charging process, and ensure that the battery is always in the best (electrochemical reaction) condition, which will prolong and optimise the battery’s service life.
The Imperium 20A AC-DC charger’s input voltage range is wide and it has multiple built in protection features. The control circuit of the charger adopts advanced, high frequency transformer LLC half-bridge resonant, soft-switching power supply control technology. The charger’s highly efficient, robust design – in a compact, light weight shell – allows for ease of installation and portability Specifications:

Input Voltage Range: AC100V~240V 45Hz~65Hz
Maximum Input Current: 3A
Maximum Output Power: 292W
Output Voltage: 14.6V±0.3V dc
Output Current: 20±1A
Operating Temperature: -10ºC~45ºC
Storage Temperature: -40ºC~75ºC
Relative Humidity: 5%~95%
Atmospheric pressure: 70KPa~106KPa
Dimensions (mm): 200(L) × 100W) × 55(H)
Net Weight: 2.0K
