Atem Power 200W 12V Solar Panel Kit Mono Shingled Fixed + Solar Mounting Brackets

DESCRIPTION Solar panels provide a way to capture the sun’s energy and put it to power your batteries. But ATEM POWER has taken a step further by integrating the newest shingled solar cell technology into its shingled solar panels/shingled panel with the key advantages: more power, improved reliability and more aesthetic.

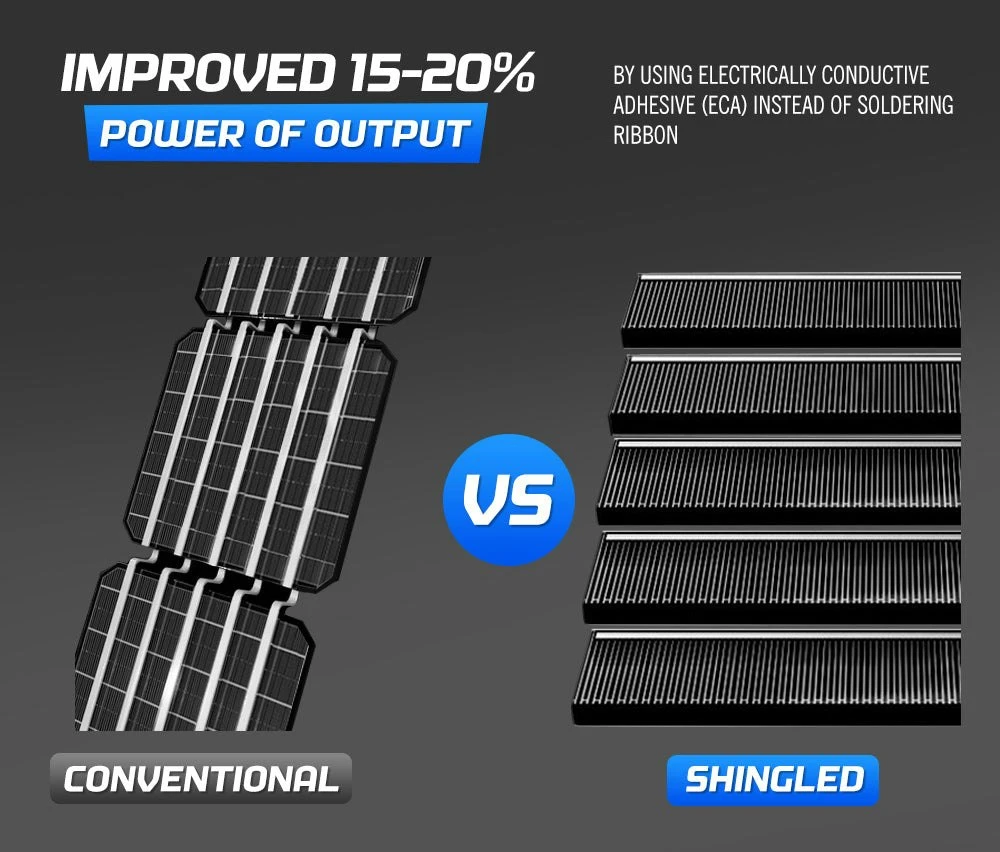

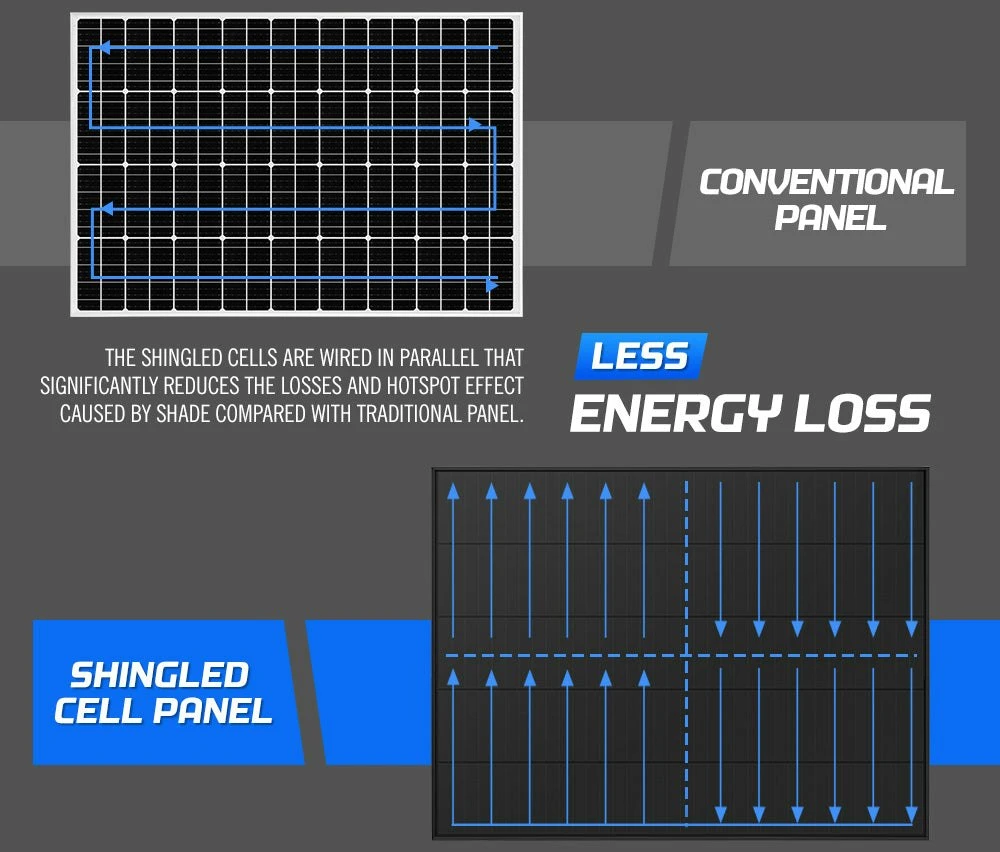

This 200W shingled solar panel avoids the use of ribbons, busbars, and soldering processes, the cells are cut into 5 or 6 strips then joined together using electrically conductive adhesives (ECA). So there is nothing but pure cell, and you’ll get 15~20% output than traditional RV solar panel since it is designed to capture more solar energy per square meter. For conventional solar panels, a shaded part can have a significant effect on power output, whereas the cells of this shingled panel are wired in parallel that significantly reduce the losses and hot spot effect caused by shade. IP-68 rating helps it defy harsh conditions, and no visible circuitry gives it a sleek look. FEATURES Shingled Cell Tech: This tech avoids the use of ribbons, busbars but creates a string of strips, so more cells are exposed to sunlight for increased energy harvest. Improved Reliability: Shingled solar panel is more resistant to failure caused by external forces applied to the panel when compared to conventional solar panels. Less Energy Loss: The shingled cells are wired in parallel that significantly reduces the losses and hotspot effect caused by shade compared with traditional panel. Greater Output: Jointed together by using electrically conductive adhesive (ECA) instead of busbars, you’ll get improved 15~20% output than traditional panel. Unbeatable Rigidity: Built with a tough aluminium frame and a thick tempered glass, this shingled solar panel is designed to stand up to harsh conditions. All Weatherproof: This shingled panel has an IP68 waterproof rating, so no worries about the rainy days. It will be with you to keep your electronics running. Suitable for Most Batteries: This 200W shingled solar panel is compatible with lead acid, AGM, GEL, Flooded, lithium-ion and LiFePO4 batteries Diverse Application: The ATEM POWER 200W shingled solar panel is perfect for 4WDs, utes, vans, camper trailers, caravans and even boats! More Aesthetic: This shingled solar panels has no visible circuitry which gives it clean, simple and sleek look while providing superior appeal. SPECIFICATIONS

200W Solar Panel

Material:
Shingled Cells

Maximum Power:
200W

Open-Circuit Voltage (VOC):
22.36V

Short-Circuit Current (ISC):
11.37A

Maximum Power Voltage (VMP):
18.64V

Maximum Power Current (IMP):
10.72A

Maximum System Voltage:
500V

Temperature Range:
-20C~ 80C

Power Tolerance:
3%

Color:
Black

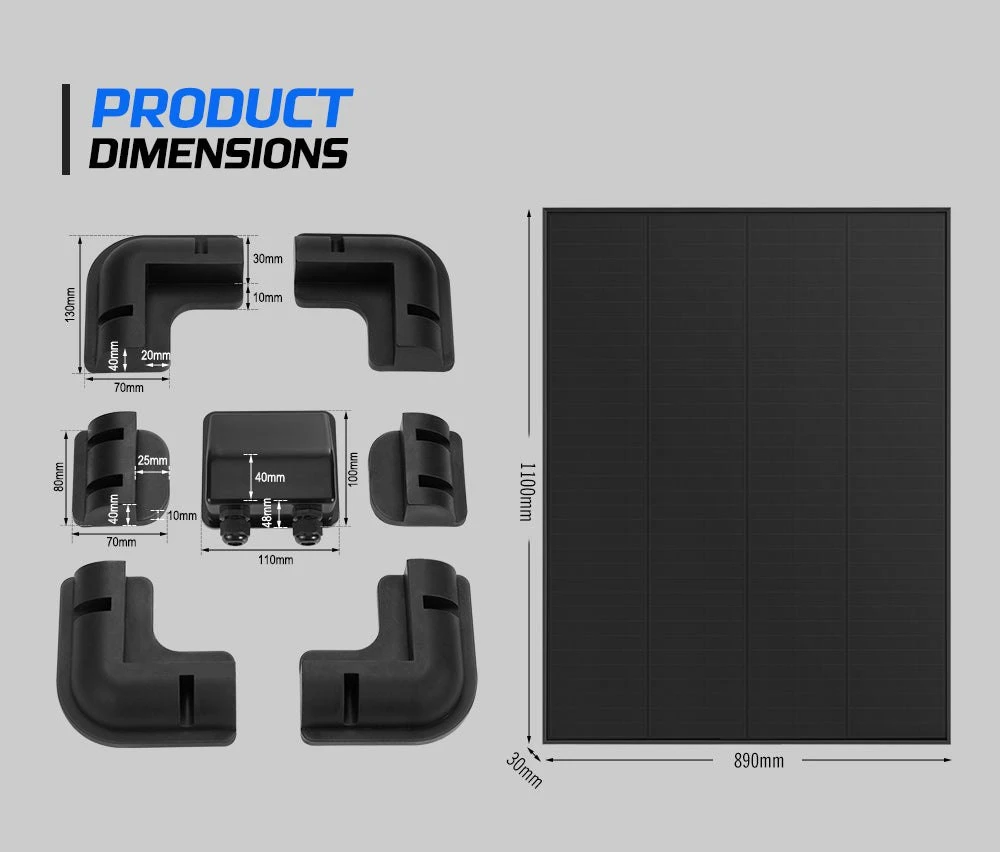

Product Size:
115x88x3cm

Package Size:
118x90x4.5cm

Gross Weight:
13.1kg

Solar Panel Brackets

Material:
ABS

Cable Entry Housing Waterproof Rating:
IP65

Compatibility:
30W~200W Panels

Color:
Black

Package Size:
21×13.5x14cm

Package Weight:
1.28kg

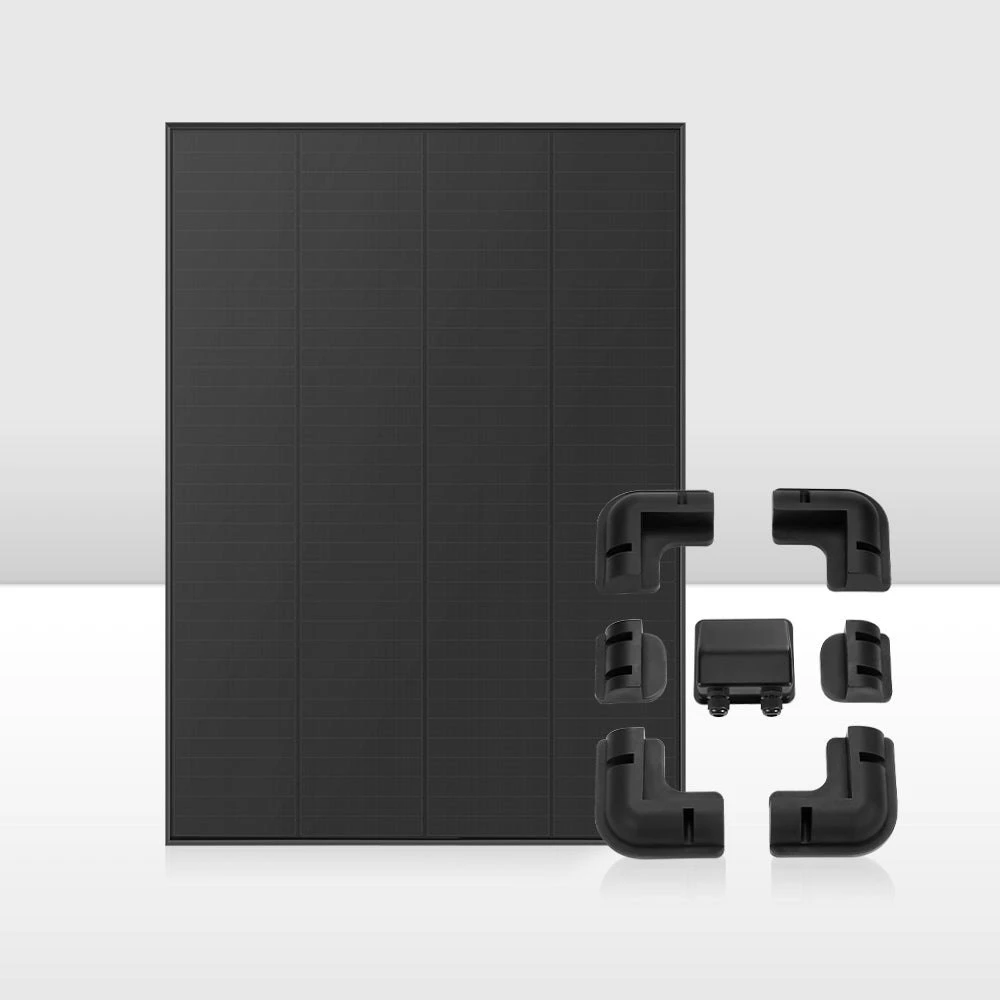

PACKAGE INCLUDES 1 x ATEM POWER 200W Shingled Solar Panel 4 x Corner Brackets 2 x Side Brackets 1 x Cable Entry Housing WARRANTY 5 Year Warranty
