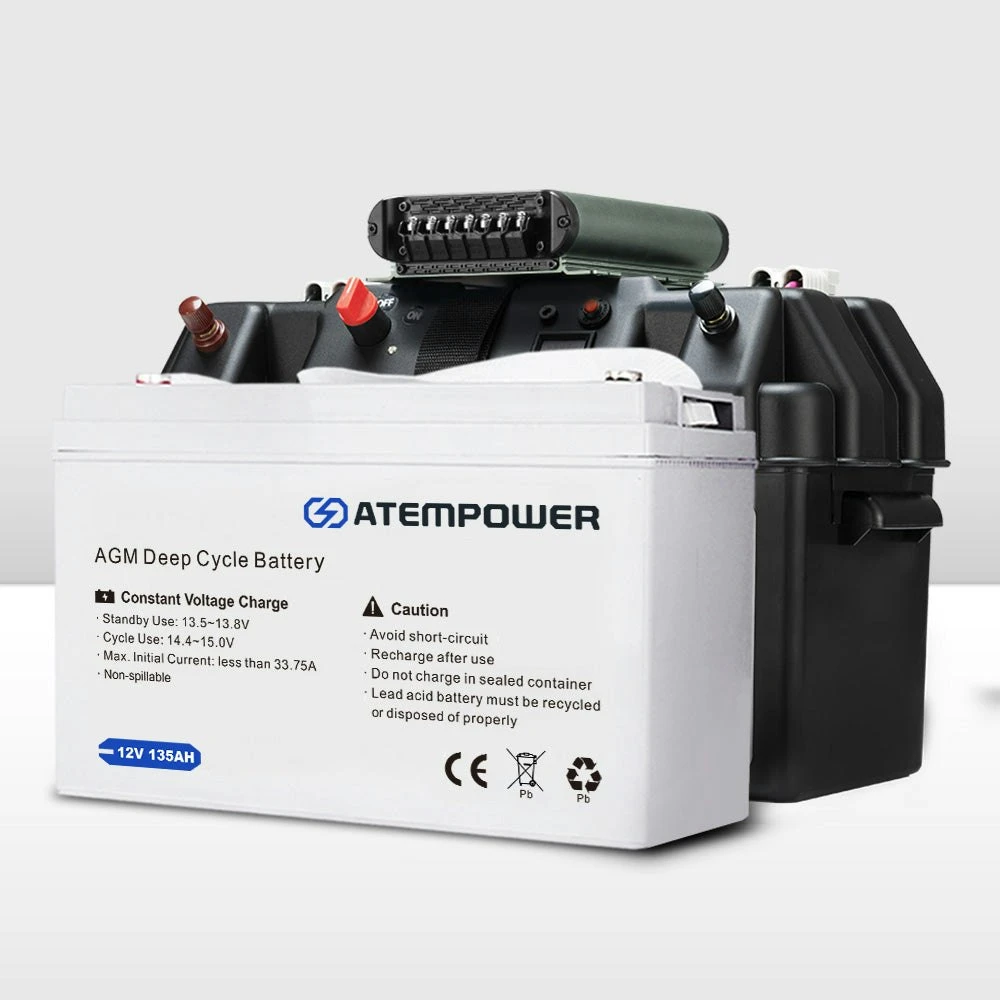

Atem Power 135Ah 12V AGM Deep Cycle Battery + 12V 20A DC To DC Battery Charger + Battery Box

DESCRIPTION The ATEM POWER AGM battery, which has built-in pure lead grip and AGM separator for enhanced conductivity and electrolyte absorption and effective charge keeping, is all weather- and temperature-resistant, and this battery is also designed for a more efficient discharge recovery. Faster recharging technology and battery protection deliver reliable performance. The sealed structure, copper alloy terminals and factory sealed lid allow no leakage of any caustic chemicals, and ABS intrusion-safe body and heavy-duty posts ensure reliable performance against any drastic vibrations shocks or outer wreckage.

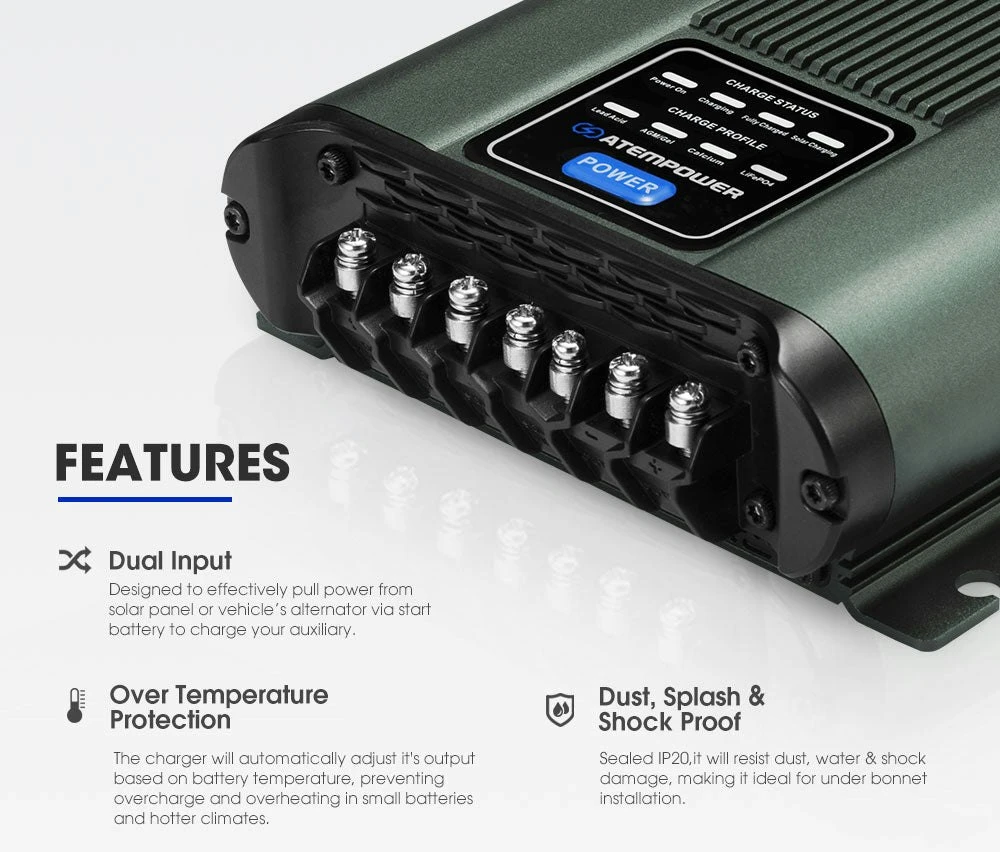

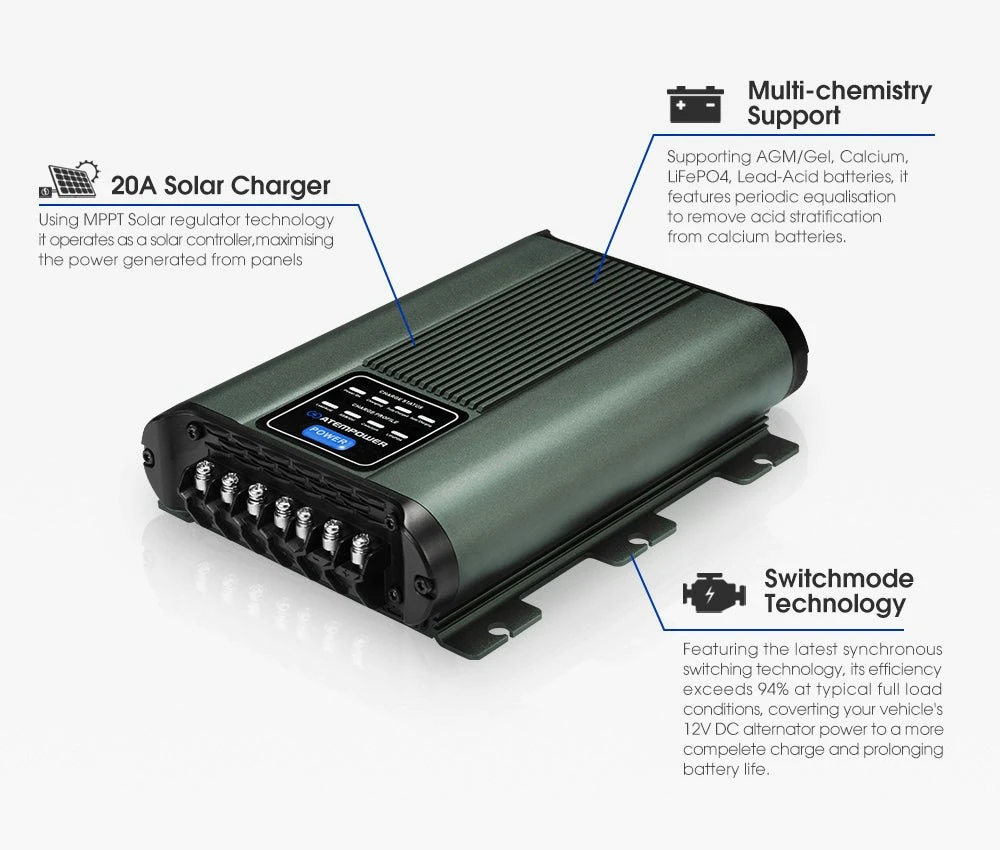

This 12V 20A DC-DC charger by ATEM POWER, which is designed to do a full charge cycle with the ability to choose either Lead Acid, AGM, Gel, calcium, LiFePO4 batteries and apply the suitable charging profile to prolong their lifespan, also incorporates Re-selection Ready mechanism that allows you to re-select the battery during charging by long pressing “POWER”. FEATURES Battery-Anti-Leakage Construction: Sealed structure, ABS intrusion-safe body and factory sealed lid ensure no leakage of any caustic materials. Battery-Weather & Temperature Resistant: All-weatherproof and able to work at temperatures down to -40 degrees Fahrenheit. Battery-Longer Lifespan: This Deep Cycle Battery is low self-discharge, less prone to sulfation and excellent water retention which can be kept out of operation for a much longer period while preserving the perfect conductivity. Battery-User Friendly Design: Built-in straps offer excellent carrying and mounting experience and ensure convenience during daily use. Charger-Dual Input: This Charger is designed to effectively pull power from solar panel (up to 20A) or vehicle’s alternator to charge your auxiliary battery,built-in MPPT regulator is designed to harvest up more energy from the solar panel. Charger-Multi-Stage Charging: This charger integrates standby, pre-charge, constant current charging, constant voltage charging, full charge and re-charge. Charger-Multiple Protection: It integrates over-charge, short circuit, over-temperature, thermal load, solar input overload, input/output reverse polarity protection. Charger-Upgraded Charging Algorithm: This algorithm is designed to select the optimum charge mode and revive your discharged battery. Charger-User Friendly Design: The LED indicator shows real-time stage of charging and memory function is integrated to make your charging more convenient. Charger-Please note: always refer to the wiring diagram in this listing for the latest wiring setup of the product as the user manual might be for previous version. SPECIFICATIONS

135Ah Battery

Brand:
ATEM POWER

Rated capacity (10 hour rate):
135Ah

Voltage:
12V

Nominal voltage:
12V

Float charge (Constant Voltage):
Voltage: 13.5 – 13.8V at 25C (77F)

Cycle Charge (Constant Voltage):
Initial Charging Current less than 25A | Voltage 14.4-15.0V at 25C (77F)

Max Initial Current:
Less than 40.5A

Max discharge current:
600A (5s) at 25C (77F)

Self-discharge capacity:
3 Months = 91% | 6 Months = 82% | 12 Months = 64%

Capacity affected by temperature:
40C = 102% | 25C = 100% | 0C = 85% | -15C = 65

Internal Resistance:
Approx. 6.0m

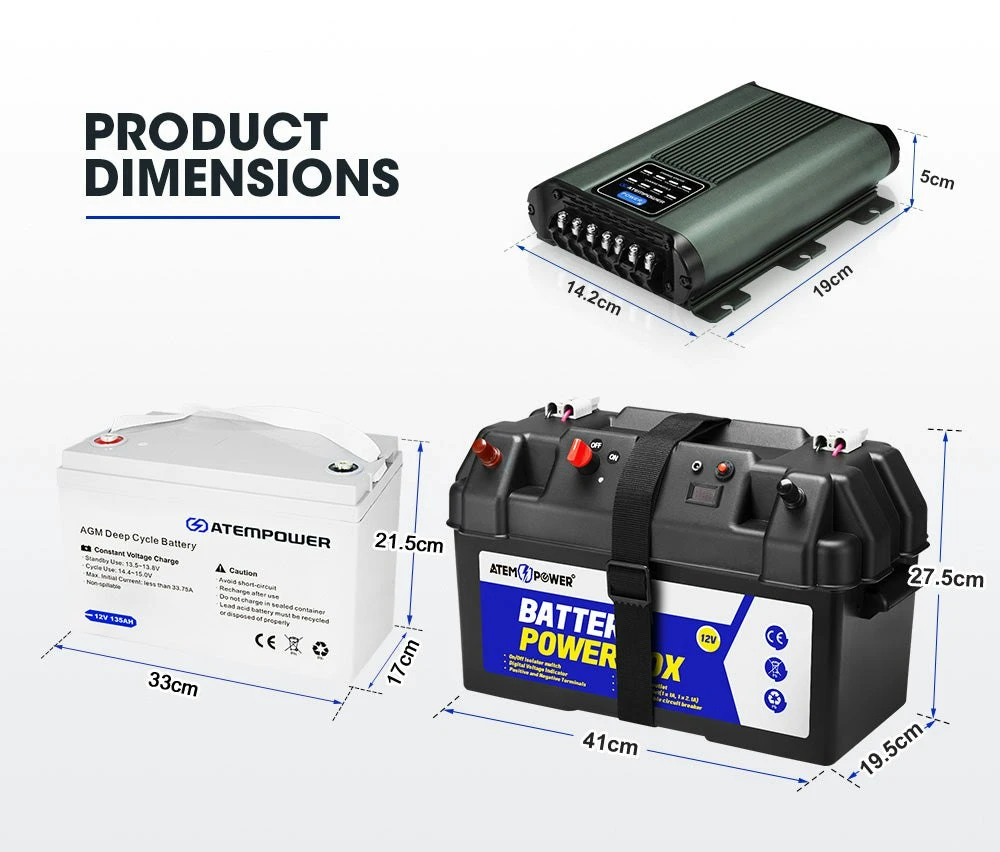

Package Dimensions:
385x220x270mmmm

Gross Weight:
27.85kg

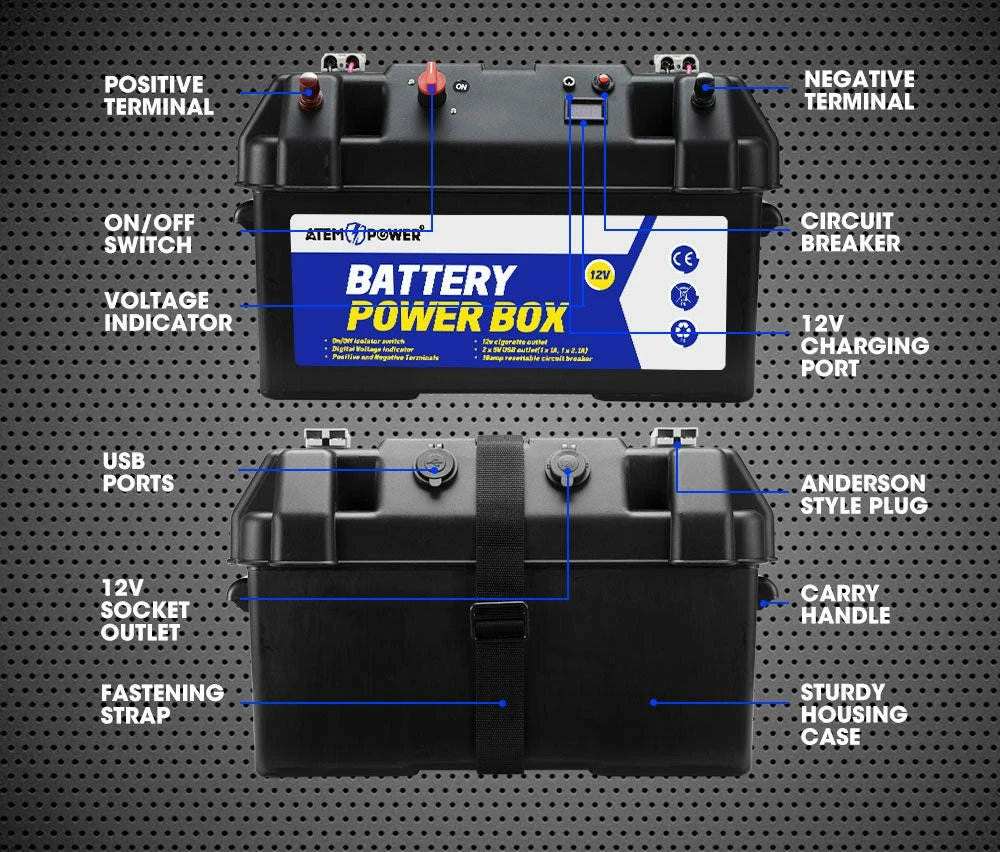

Battery Box

Colour:
Black

Input voltage:
12-24 V DC

Anderson Plugs:
50A

5V USB Ports:
1A/2.1A

CIG Socket:
12V

Circuit Breaker:
10A

Package Dimensions:
470x255x290mm

Gross Weight:
2kg

20A DC to DC Charger

Type:
Multi Stage

Input:

DC Battery: 13.0~16.0Volts
Solar PACKAGE INCLUDES 1 x AGM Battery 1 x Battery Box 1 x Fastening Strap 1 x Internal Bracket 1x 20A DC-DC Charger WARRANTY 1 Year Warranty
