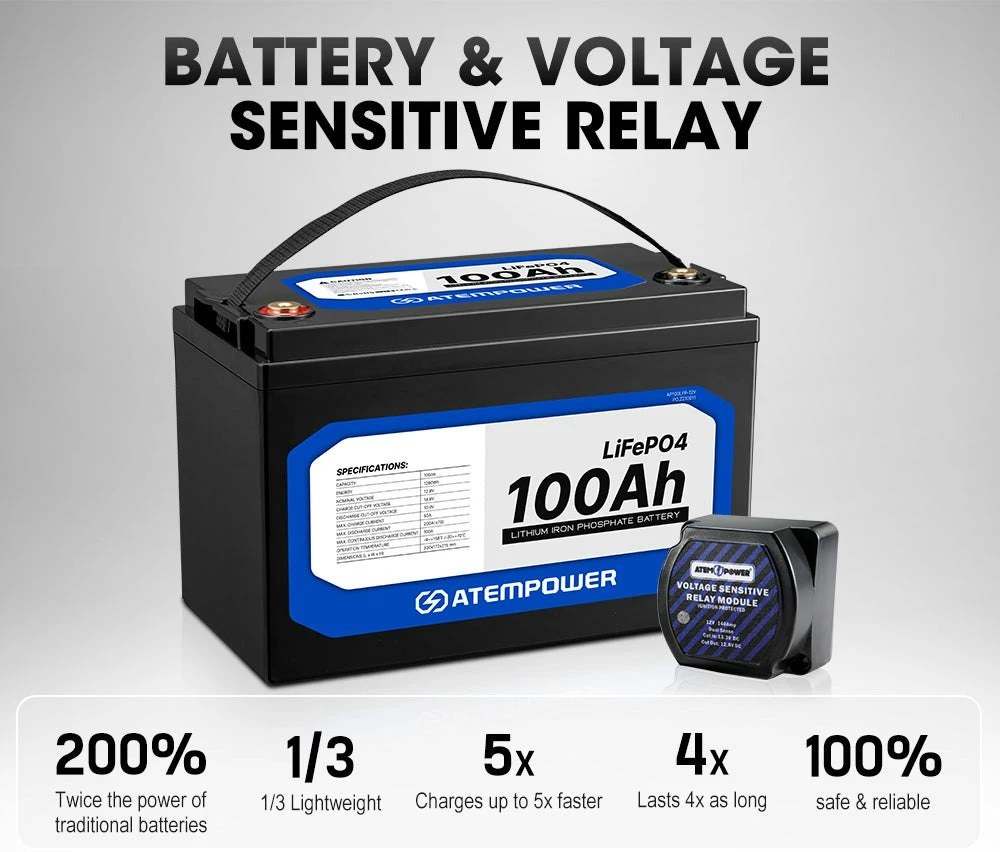

Atem Power 12V 100Ah Lithium Battery LiFePO4 Deep Cycle+Voltage Sensitive Relay

DESCRIPTION Choosing the right LiFePO4 battery is essential to optimize performance for your camping, RV, or backup application. The ATEM POWER 12.8V 100AH lithium ion battery is the one that rarely fails to meet your expectations.

Built using A-grade cells that deliver a higher energy density and voltage capacity than lead acid batteries, this lithium LiFePO4 battery stores 2~3 times the energy of AGM batteries of similar size and weight. It is the perfect accompaniment for any camping trip and provide a reliable energy source for camping fridges, 12V lights and other devices.

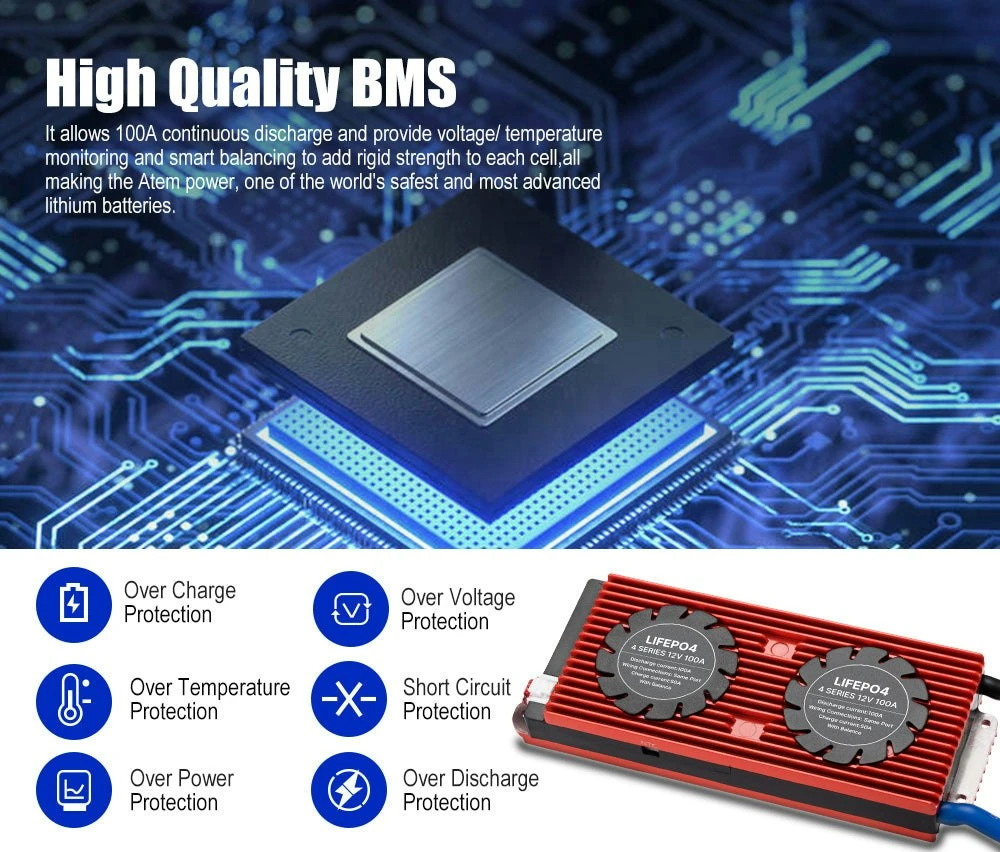

Our lithium batteries are protected by high quality BMS, which allows high peak discharge current of 200A and continuous discharge current of 100A, powerful enough to run high wattage appliances.

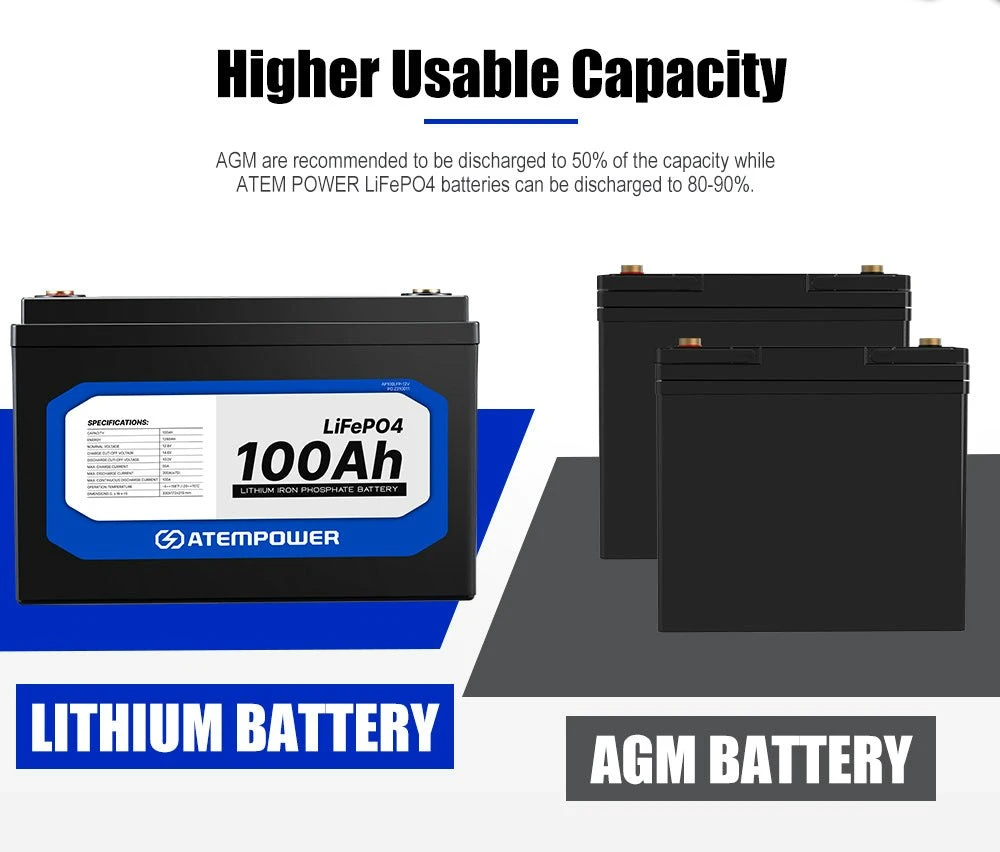

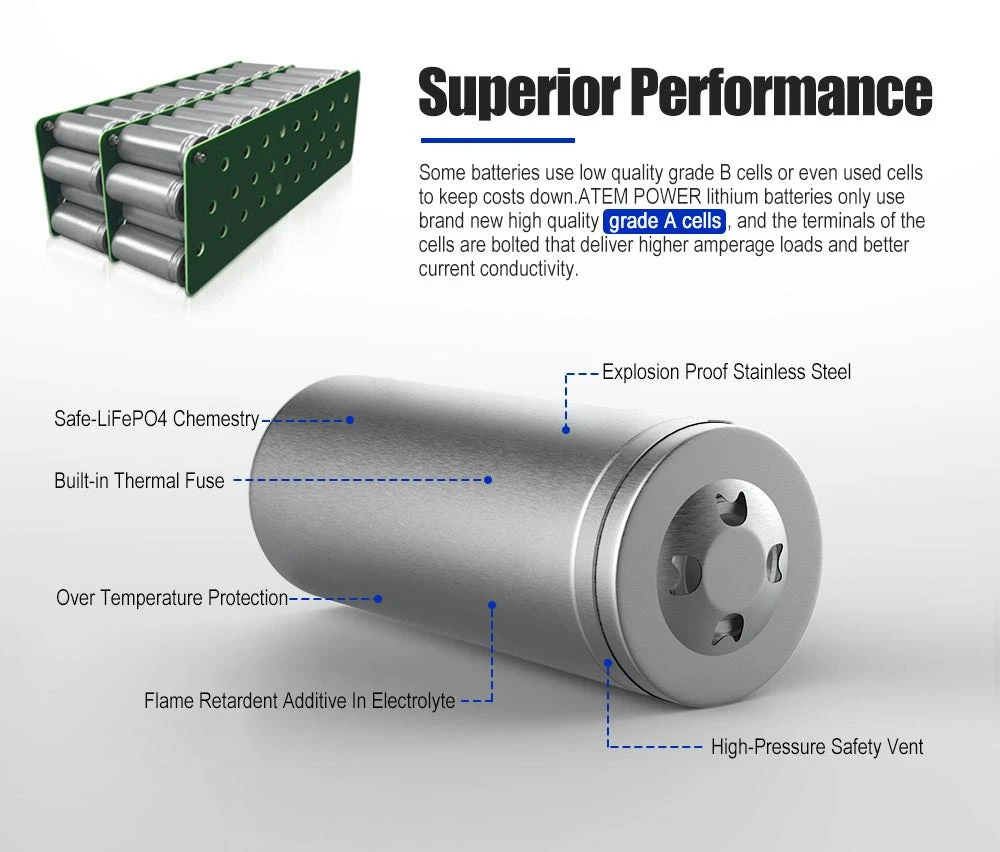

Using this ATEM POWER LiFePO4 battery is arguably the safest way to power your camping trip. Since it is designed to also withstand any damage without exploding, keeping your trip safe. FEATURES A Grade Cell: This battery is composed of A grade cells, and the terminals of the cells are bolted that deliver higher amperage loads and better current conductivity. Longer Lifespan: This LiFePO4 battery can deliver up to 2,000 rounds — several times the life of a lead-acid counterparts. Higher Usable Capacity: AGM are recommended to be discharged to 50% of the capacity while ATEM POWER LiFePO4 batteries can be discharged to 80-90%. High Quality BMS: It allows 100A continuous discharge and provide voltage/ temperature monitoring and smart balancing to add rigid strength to each cell. High Power Output: It has been designed to allow sufficient discharge amp rating to power high power appliances such as a microwave or coffee machine. Run in Parallel or Series: Designed to allow for up to 2 batteries in series or 2 batteries in parallel to achieve desired voltage and amp-hour capacity of the bank. Faster Charging: Lower internal resistance allows this lithium battery to accept charge at a greater rate, allowing it to be charged and ready to use much faster. Low Self-Discharge: This lithium LiFePO4 battery has a low self discharge rate, meaning it can be left standing for months and not run out of juice. Impeccably Lightweight: It provides 100AH that doubles the power of a lead acid battery with 1/3rd of that weight when towing or mobility is in the consideration. Safe & Smooth: This LiFePO4 battery is thermal stable and eliminates the risk of explosion and can operate efficiently at a temperature range of -20℃～70℃. SPECIFICATIONS

100AH Battery

Nominal Capacity:
100Ah

Nominal Voltage:
12.8V

Life Cycle:
2,000 Cycles

Charge Voltage:
10V-14.6V

Max. Continuous Charge Current(25C):
50A

Max. Continuous Discharge Current(25C):
100A

Max. Charge Current:
50A

Max. Discharge Current(7S):
200A

Internal Impedance:
10m

Charge Temperature:
-20~70C

Discharge Temperature:
-20~70C

Standard Operation Temperature:
-20~70C

Self-discharge Rate(per month):
2%

Max. Modules in Series/Parallel:
2S/2P

Package Dimension:
41cm x 26.5cm x 30cm

Gross Weight:
13.65kg

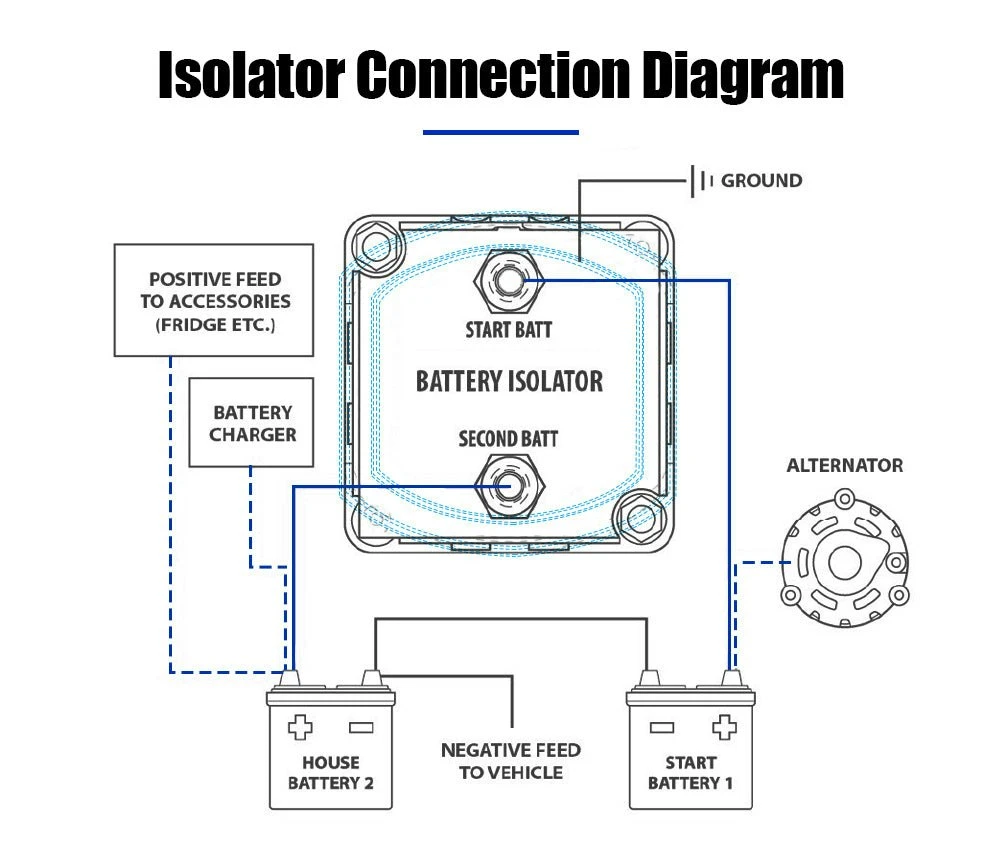

Voltage Sensitive Relay

Continuous Current
140A

Max Current
160A

Current Draw – Charging
280mA

Current Draw – Standby
8mA

Disengage delay
5-10 Seconds

Recommended Fuse
80Amp

Power Studs
M6 Stainless Steel

Surge Protection
Built-in

Package Size:
16.50cm x 12.20cm x 6.00cm

Gross Weight:
0.55kg

PACKAGE INCLUDES 1 x ATEM POWER 100Ah Lithium Iron Phosphate Battery 1 Set of Screws & Nuts & User Manual For Battery 1x 12V Voltage Sensitive Relay 1x 7AWG X 24″ Red Battery Cable Cut to Length 1x 7AWG X 12“ Length Red Battery Cable 1x 12″ Length Battery to Ground Cable 1x 5/16” Lug Cable End & 2x 3/8” Lug Cable End 2x Red Shrink Tube 2x Hook and loop Velcro 1x Accessories For Voltage Sensitive Relay WARRANTY 1 Years Warranty
