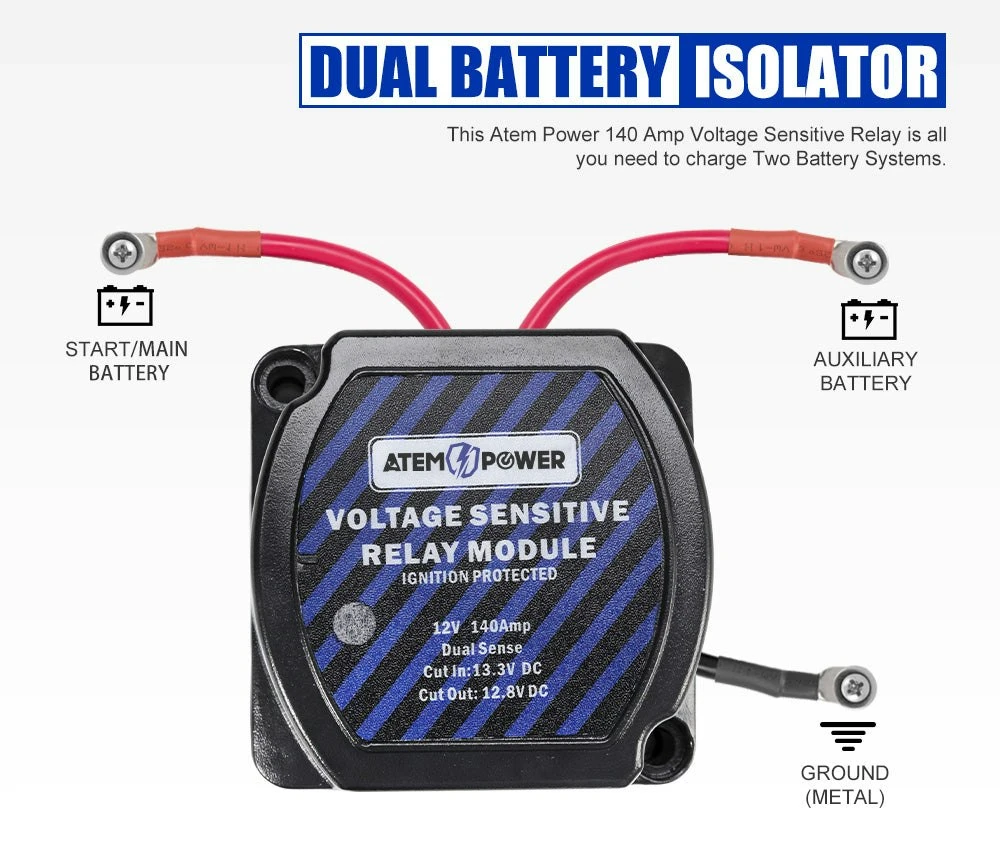

140A Voltage Sensitive Relay Vsr 12V Dual Battery System Isolator

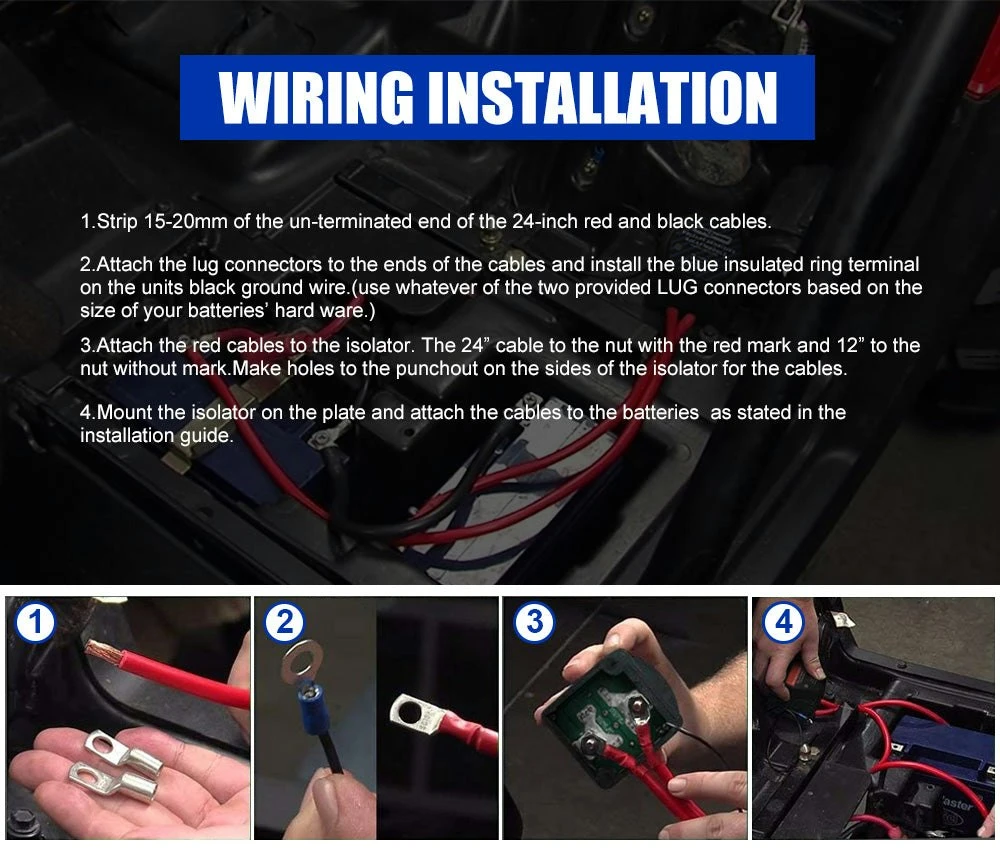

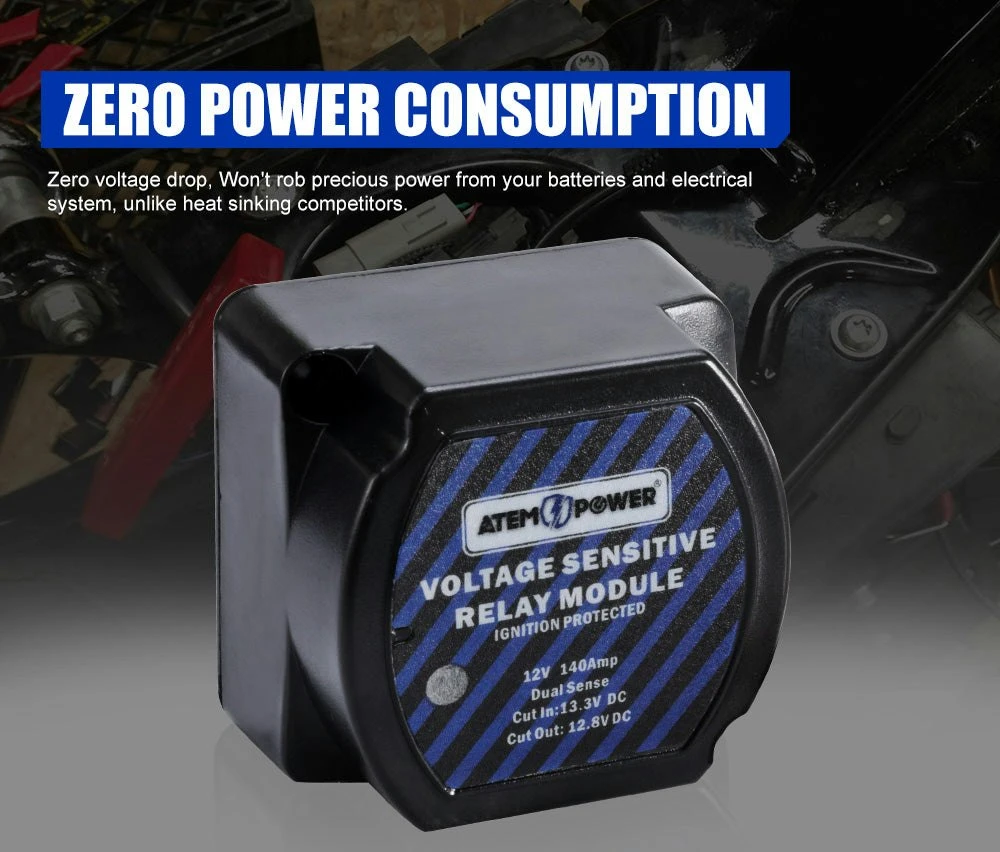

DESCRIPTION . FEATURES Zero Voltage Drop.Won’t rob precious power from your batteries and electrical system, unlike heat sinking competitors. Small Convenient Size.Only about 2 inches tall, wide & deep the isolater fits just about anywhere! Fast & Easy Installation. Simple power wire IN, power wire OUT install. Comes with mounting plate/template. IP65 Weather & Strong Vibration Protection. Suitable for all off-road vehicles and weather exposed applications. Most Efficient Programming in the Business. Ensures your electrical system functions properly and batteries charge accurately. Specially designed for ATV, UTV, boats, RV’s, campers, 5th wheels, off road vehicles, Rhino, Polaris, Artic, Cat, Etc. Comes With Necessary Hardware & Mounting Instructions. SPECIFICATIONS

Continuous Current
140A

Max Current
160A

Current Draw – Charging
280mA

Current Draw – Standby
8mA

Disengage delay
5-10 Seconds

Recommended Fuse
80Amp

Power Studs
M6 Stainless Steel

Surge Protection
Built-in

Package Dimensions
16.50cm x 12.20cm x 6.00cm

Weight
0.55kg

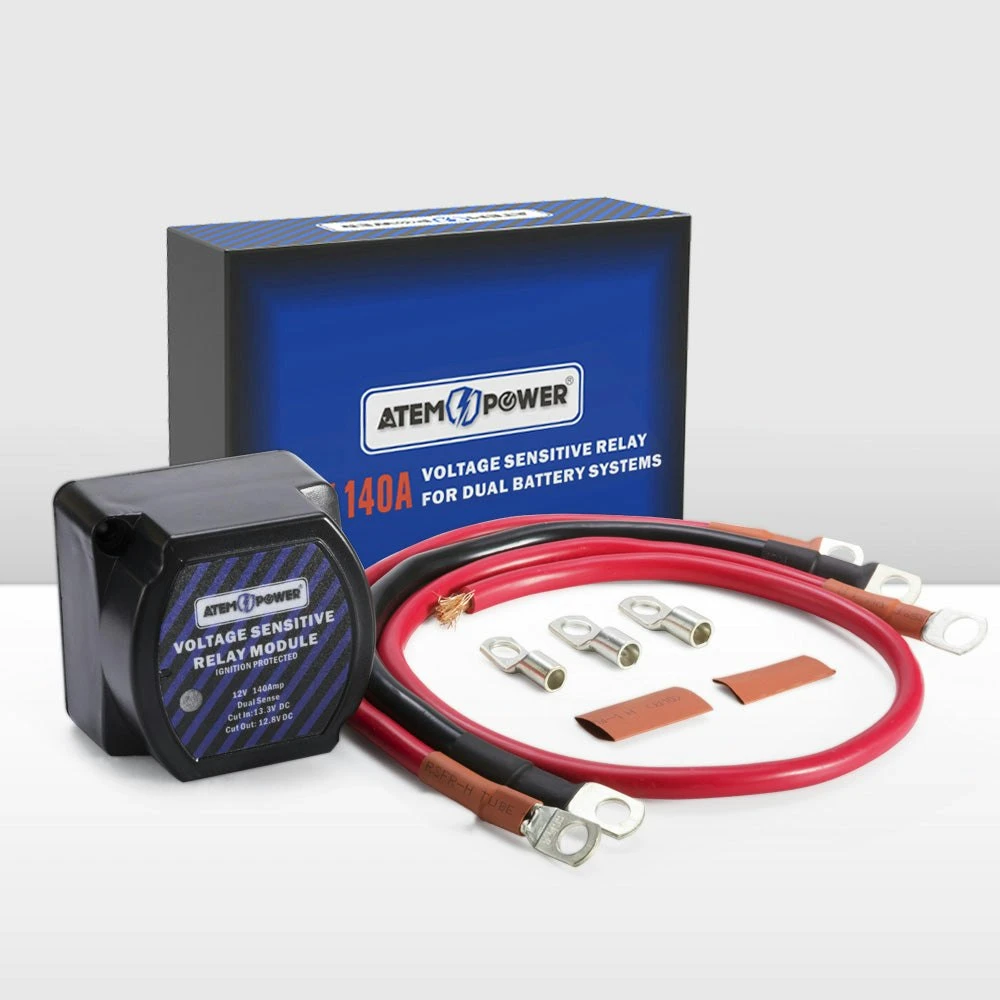

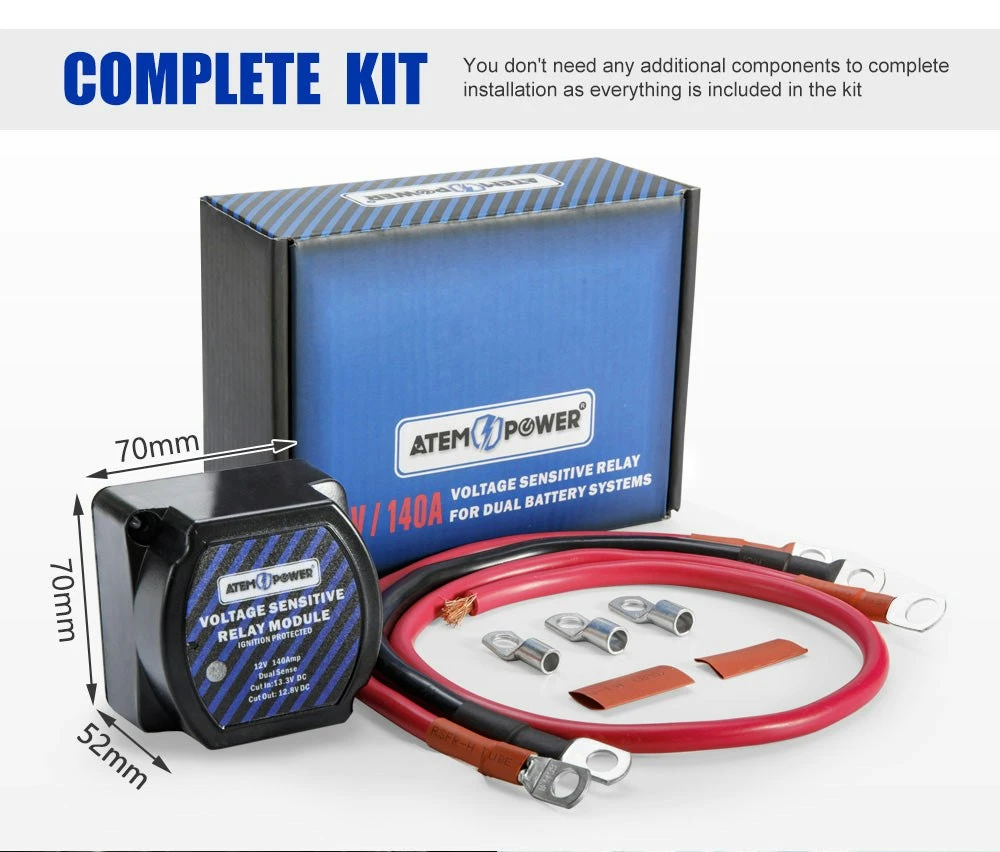

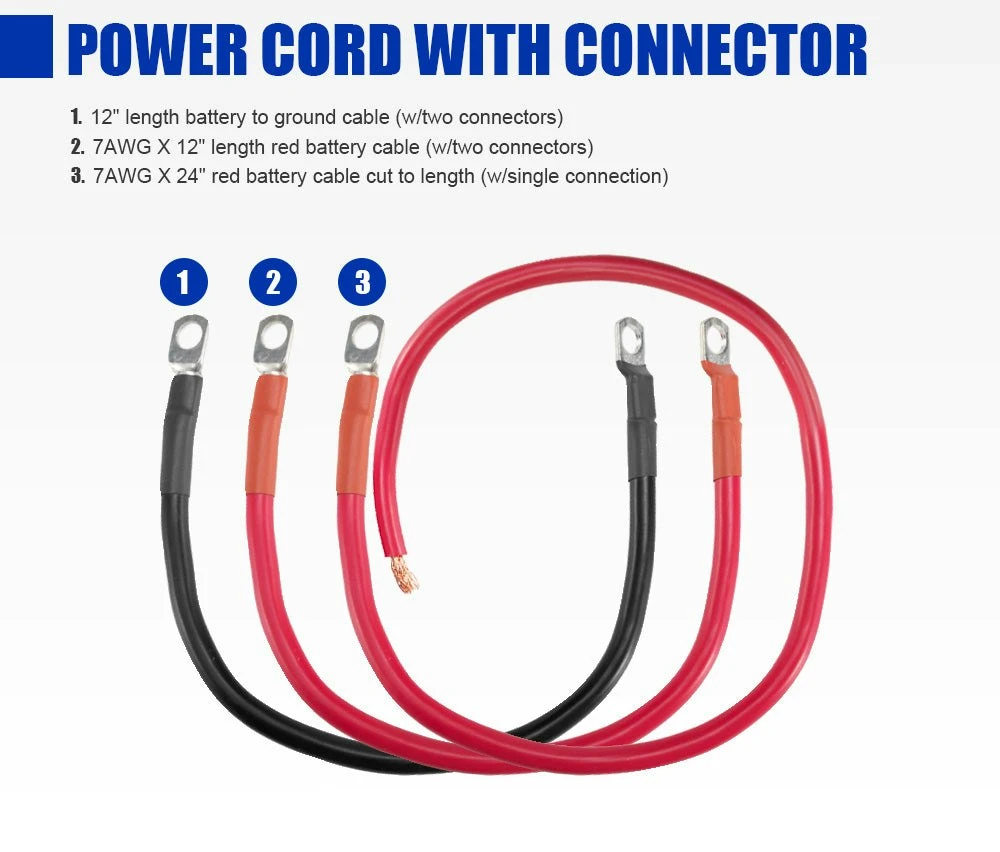

PACKAGE INCLUDES 1x 12V Voltage Sensitive Relay 1x 7AWG X 24″ Red Battery Cable Cut to Length 1x 7AWG X 12“ Length Red Battery Cable 1x 12″ Length Battery to Ground Cable 1x 5/16” Lug Cable End 2x 3/8” Lug Cable End 2x Red Shrink Tube 2x Hook and loop Velcro 1x Accessories WARRANTY 1 Year Warranty
