12V 200W Folding Solar Panel Blanket+DC To DC Battery Charger

DESCRIPTION If you are a frequent-traveller, you must know how critical it is to have a flexible power source. This is where this foldable solar panel comes into play. Made from poly/cotton canvas, this 200W solar blanket can be packed down to 1/8 of its full size and is only 7kg, which makes it ideal for outdoor activities.

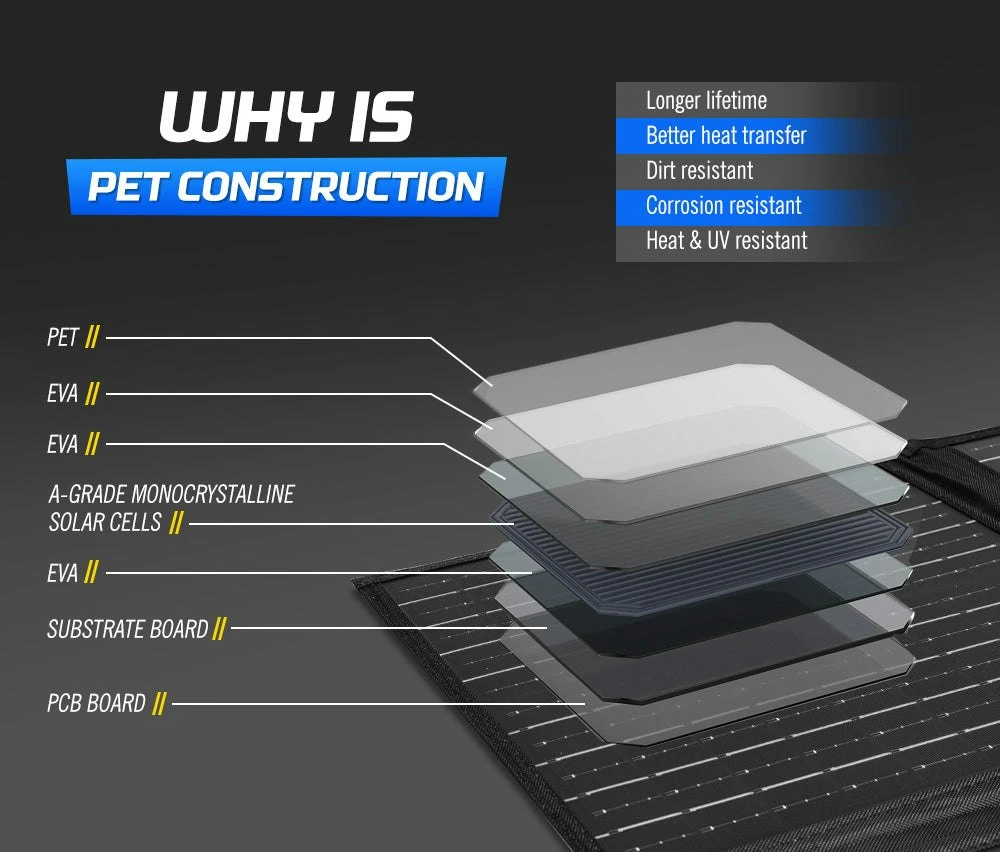

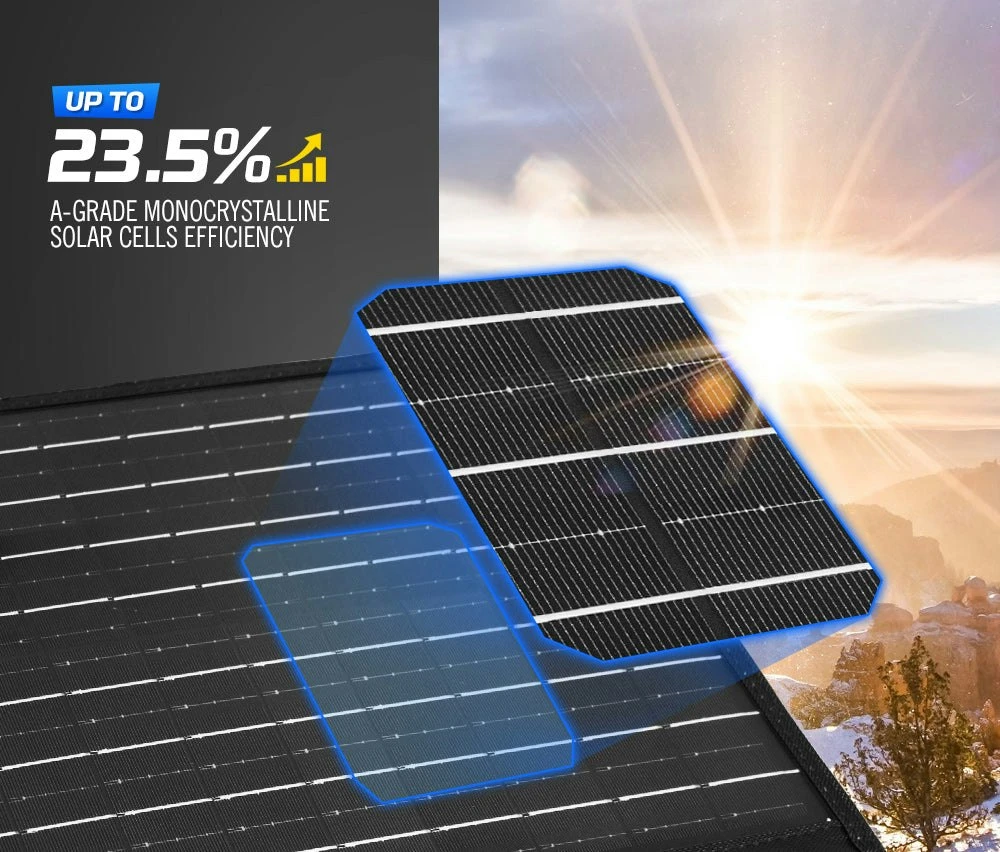

A-grade monocrystalline solar cells feature energy conversion efficiency of 23.5% for an efficient power output when your electronic device drains. This ATEM POWER solar blanket features auto-optimization function for immediate reconnection when sunlight returns after charging interruption, and comes with a lithium compatible MPPT controller which can adjust the voltage to get a boost of current during times of peak demand and helps you get 20% more energy than a PWM controller. This solar blanket is waterproof and all cables are terminated with Anderson plugs for easy and secure connection. With ATEM POWER, you are full equipped to rediscover the fun of off-road. FEATURES Monocrystalline Solar Cell: A-Grade monocrystalline solar cells feature the fastest charging speed possible with an energy conversion efficiency of up to 23.5%. Premium PET Films: These films feature light penetration rate of 95%, which can greatly increase energy conversion efficiency of this ATEM POWER solar panel. Superior Portability: Made from poly/cotton canvas, this super thin foldable solar panel is only 5.9kg and can be packed down to 1/8 of its full size. User-Friendly Design: This ATEM POWER portable solar panel is designed with 8 stitched loops which are quite handy if you make up hooks when it gets windy. Plug & Play Connection: All cables are terminated with Anderson plugs for easy and secure connection. Hassle Free Reconnecting: Auto-optimization function achieves immediate reconnection when sunlight returns after charging interruption. Upgraded Controller: This solar blanket comes with a lithium compatible MPPT controller which helps get 20% more energy than a PWM controller. Ultimate Protection: The overcharging cut-off technology ensures ultra reliable performance of this solar blanket. Lithium Compatibility: Ideal for camping, caravanning, RVing, this solar blanket can be connected to AGM, lead acid, Gel, Calcium & LiFePO4 batteries. Multiple Functionality: The controller features USB port to charge portable devices directly, including smartphones, tablets, digital cameras, etc. SPECIFICATIONS

Solar Panel

Maximum Power(Pmax)
200W

Max Power Voltage
18.2V

Max Power Current
10.99A

Open-Circuit Voltage
22.4V

Short-Circuit Current
11.75A

Cell Efficiency
Up to 23.5%

Maximum System Voltage
1000VDC

Temperature Range
-40C to +85C

Power Tolerance
2%

Standard Test Conditions
1000W/m2, AM1.5, 25C

Solar Cell
Mono

Product Dimension(Folded)
480x380x60mm

Product Dimension(Open)
1900x730x5mm

Weight
7kg

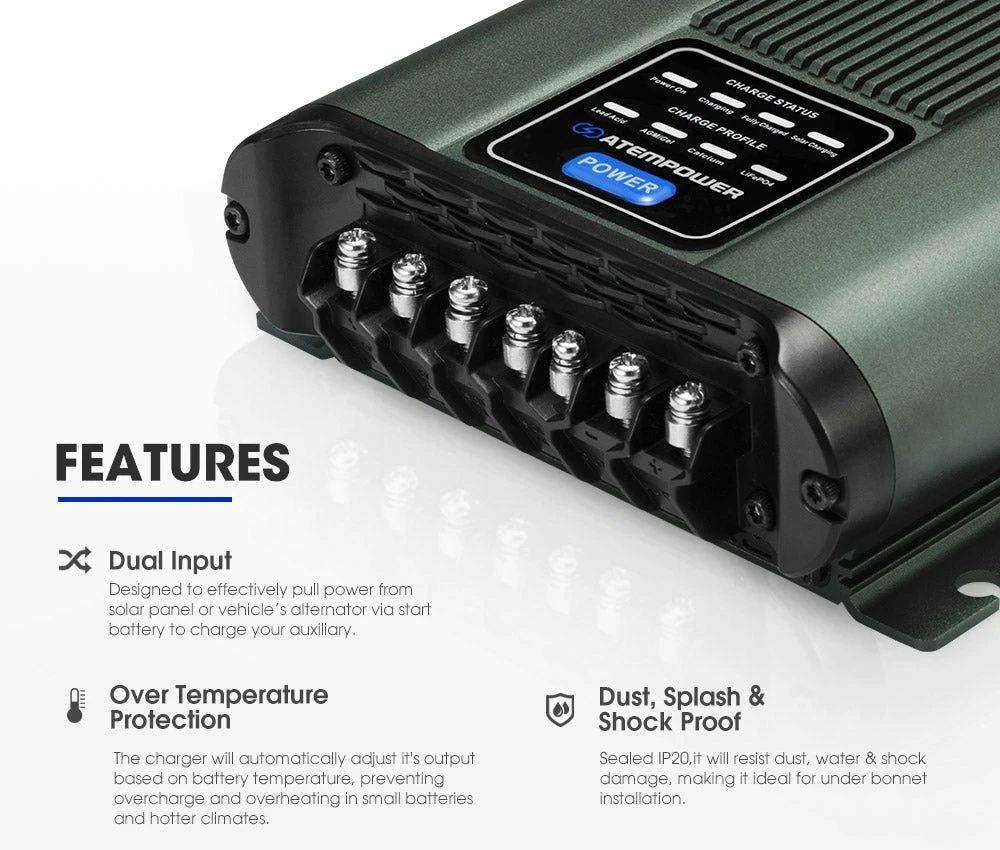

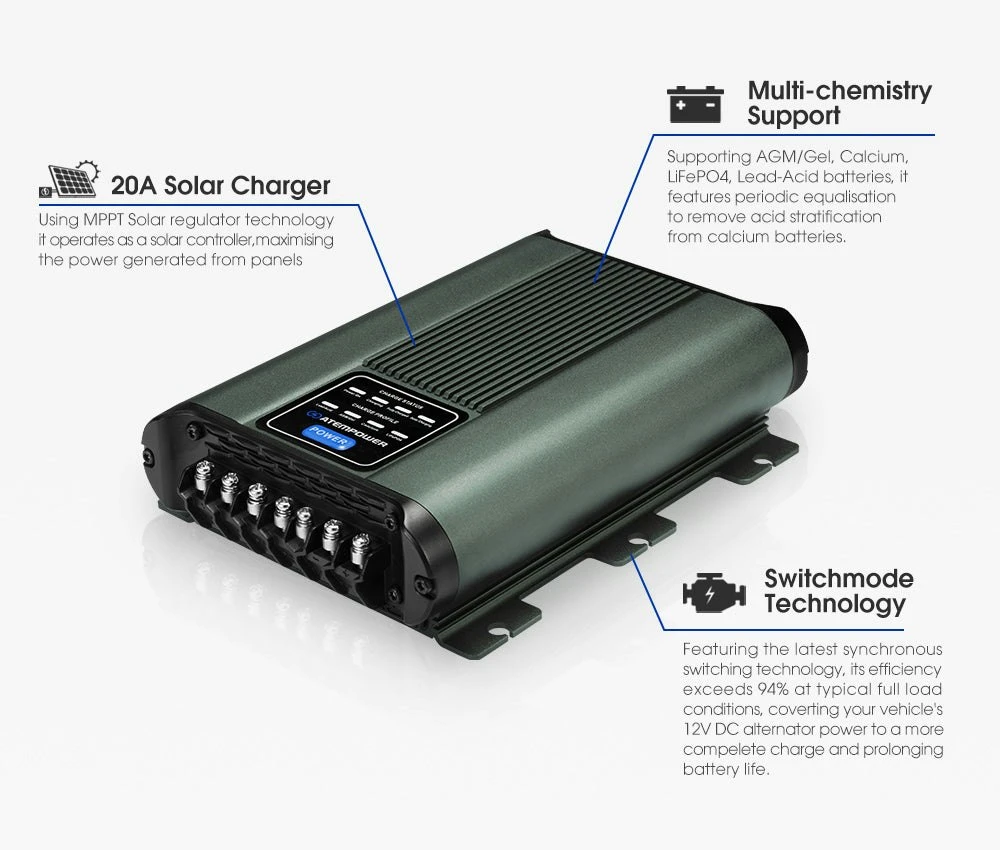

DC to DC Charger

Input:
DC Battery: 12.5~16.0Volts / Solar Input: 16.0-25.0 Volts

Output/Charging Voltage:
14.4~15.4 Volts(Stops charging when alternator output or vehicle battery below 12.5 volts)

Output Current:
DC Output: 20A / Solar Output: 20A

Minimum Start Voltage:
2.5 Volts-For battery being charged

Bulk Charge Voltage:
14.7V(AGM/Gel)14.4V(Lead Acid)15.4V(Calcium)14.4V(Li-ion)

Absorption:
Constant voltage with automatic amperage control

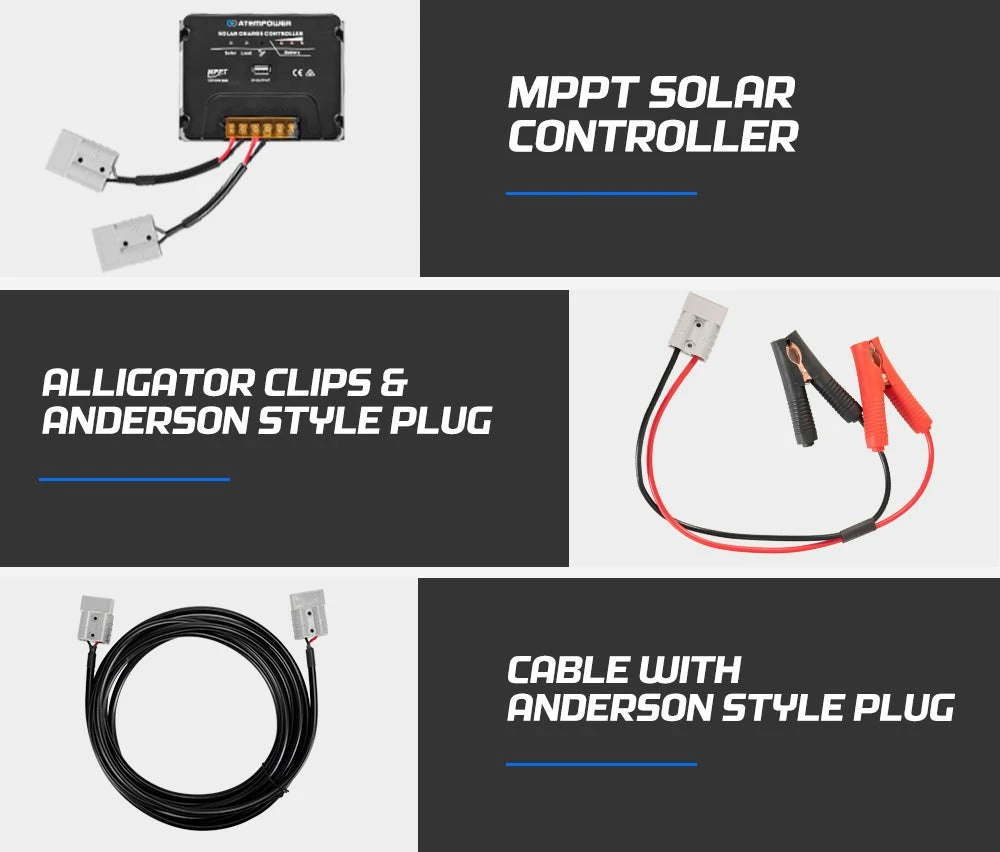

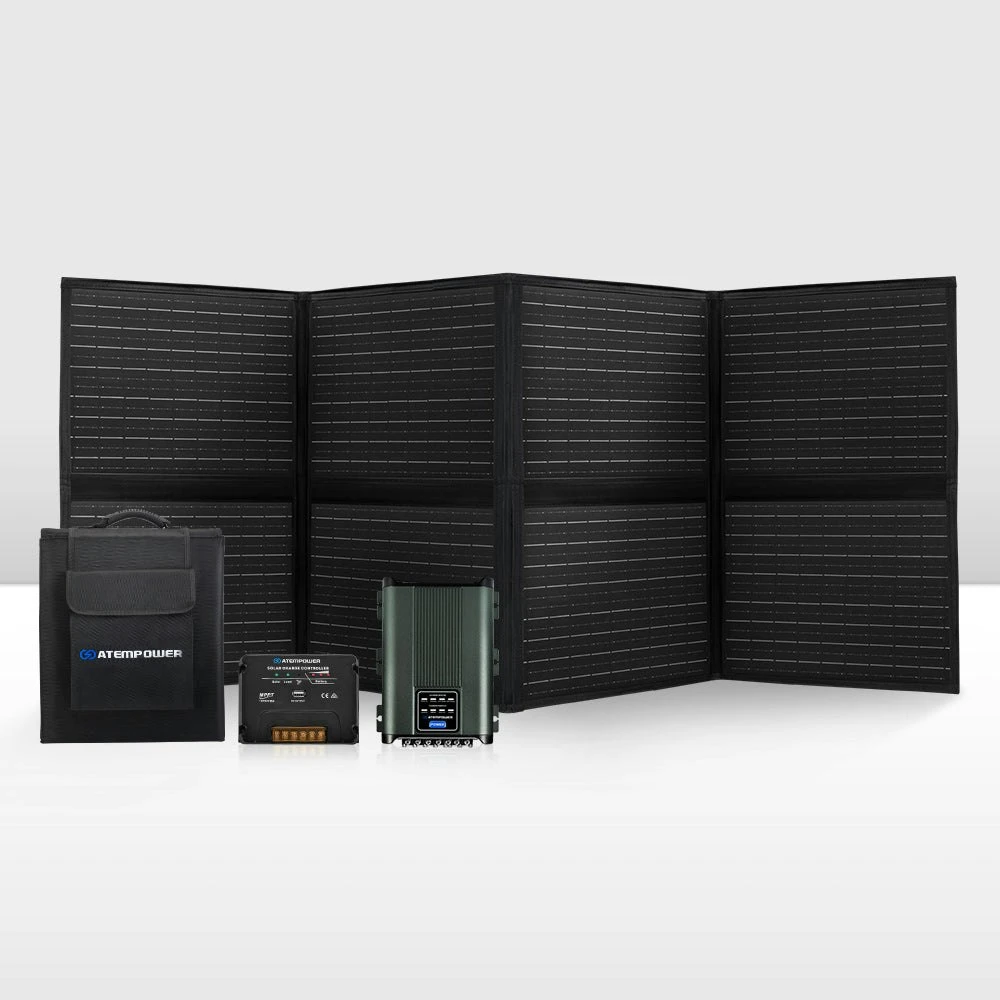

Float Charge PACKAGE INCLUDES 1 x Atem Power 200W Monocrystalline Folding Solar Blanket 1 x MPPT Solar Controller 1 x 450cm Extension Cable with 50A Anderson Plugs 1 x 50cm Cable with Alligator Clips 1 x User Manual 1x ATEM POWER 20A DC-DC Charger 1x Manual WARRANTY 1 Year Warranty
